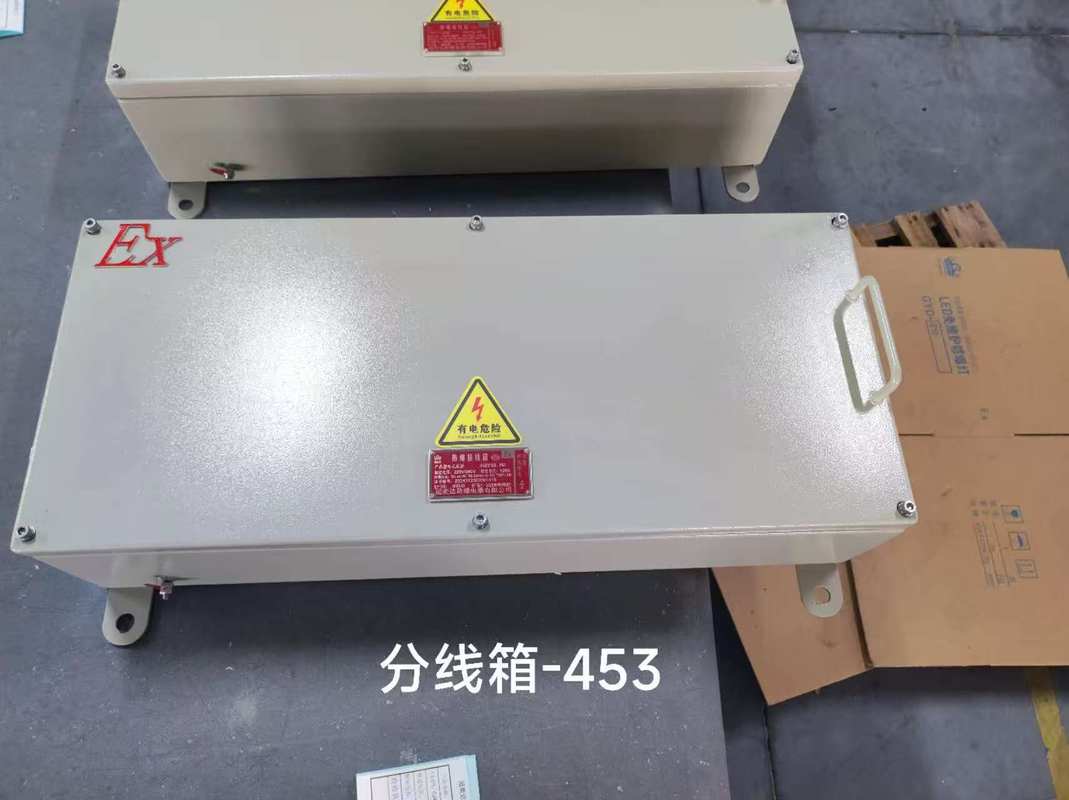

Aluminum IP68 Ex Proof Junction Box For Hazardous Area
Explosion-proof junction box straight through Explosion-proof junction box cast aluminum 6 points explosion-proof junction box two-way explosion-proof junction box
AC series stainless steel explosion-proof junction box/AC series stainless steel explosion-proof junction box
Scope of application
1. Applicable to hazardous locations in Zone 1 and Zone 2.
2. Applicable to the explosive gas environment of ⅡA, ⅡB, and ⅡC, and the temperature group is T1-T6
technical parameter
3. Executive standard: GB3836.1-2000, GB3836.2-2000, GB3836.3-2000, IEC60079
4. Rated voltage: AC380/50Hz
5. Rated current: 20A
6. Anti-corrosion grade: WF2
7. Material: cast aluminum, stainless steel
8. Applicable: It can be used for steel pipe wiring or direct cable crossing
9. Product shelf life: one year
| Serial number | DN thread | G thread |
| 1 | 15 | G1/2" |
| 2 | 20 | G3/4" |
| 3 | 25 | G1" |
| 4 | 32 | G1 1/4" |
| 5 | 40 | G 1 1/2" |
| 6 | 50 | G2" |
| 7 | 70 | G2 1/2" |
| 8 | 80 | G3" |
| 9 | 100 | G4" |
