รายละเอียดสินค้า:
|
| ชื่อผลิตภัณฑ์: | หลักฐานการระเบิดไฟ LED High Bay High Bay | วัสดุ: | อลูมิเนียม |
|---|---|---|---|
| อุณหภูมิสี (CCT): | 5700k-6500k | ประสิทธิภาพของโคมไฟส่องสว่าง: | 120 ล./ก |
| CRI (ra>): | 70±2 | อุณหภูมิในการทำงาน: | -20 ℃ -60 ℃ |
| พื้นที่แอปพลิเคชัน: | โซน 2,21,22 | แบรนด์ไดรเวอร์: | Meanwell |
| แหล่งกำเนิดแสง: | ครี | แรงดันไฟฟ้า (V): | 100-240V |

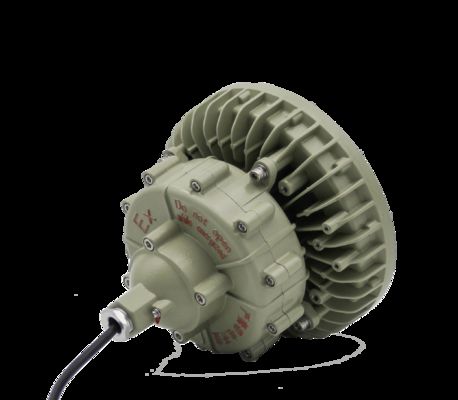

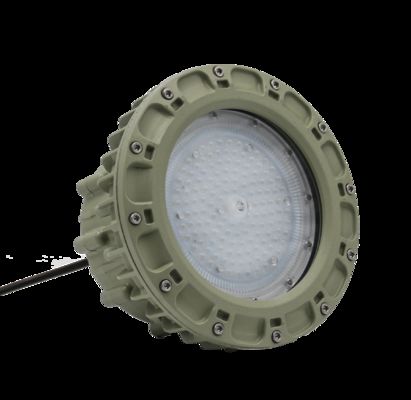

Maintenance Free Hazardous Location Explosion Proof Led High Bay Lights
Features:
1. Zone2, Zone 21,22
2. Instant on crisp white light output
3. High efficiency drivers and LEDs provide, low cost operation in harsh and heavy industrial applications
4. Isolated LED compartment reduces temperature within driver housing
5. Multi choice of beam angle for 60° 90° 120°
Application:
1. Petroleum and Chemical Industry
Locations: Refineries, chemical plants, drilling platforms, gas stations, and oil depots.
Hazardous Materials: Flammable and explosive gases and vapors such as crude oil, natural gas, gasoline, benzene, and alcohols.
2. Coal Mining Industry
Locations: Underground tunnels, mining faces, and transfer stations.
Hazardous Materials: Gas (primarily methane) and coal dust.
3. Dust Explosion Environments
Locations: Flour mills, sugar refineries, feed processing plants, metal processing plants (aluminum and magnesium powders), wood processing plants, and plastics plants.
Hazardous Materials: Combustible dust suspended in the air.
4. Pharmaceutical and Food Industry
Locations: Some raw material workshops, ethanol extraction plants, and starch or sugar powder processing areas.
Hazardous Materials: Alcohol vapors and combustible dust.
5. Other Industrial Sites
Sites: Paint spraying workshops (solvent vapors), solvent warehouses, gas boiler rooms, and sewage treatment plants (may generate methane).
Hazardous Materials: Various flammable and explosive chemicals.
Specification:
| European (ATEX) Gas and Dust | II 2G Ex nR e IIC T6 II 2D Ex td T80℃ | ||||||
| For use in | Zone 2 & Zone 21, 22 | ||||||
| Electrical data | |||||||
| Rated voltage | 100-240VAC, 50-60Hz | ||||||
| Power factor | >0.95 | ||||||
| THD | <20% | ||||||
| Luminous characteristics | |||||||
| Power consumption [W] | 20～70 | 80-100 | 100-200 | 220-300 | |||
| Colour rendering [CRI] | 70 (±2) | ||||||
| Colour temperature [K] | 5700-6500 | ||||||
| Luminaire efficiency [Lm/W] | 125 | ||||||
| Beam angle | 120° (60°, 90° is optional) | ||||||
| Mechanical data | |||||||
| Degree of protection | IP66 | ||||||
| Cable entry | G 3/4” | ||||||
| Weight [kg] | 4.8 | 6.4 | 8.8 | / | |||
| Terminal | ≤2.5 mm² | ||||||
| Mounting Styles | Ceiling; Wall Bracket; Pendant | ||||||
Installation method:
Bracket type, hoisting type, flange type, ceiling type, wall type
