รายละเอียดสินค้า:
|
| ชื่อผลิตภัณฑ์: | หลักฐานการระเบิดไฟ LED High Bay High Bay | วัสดุ: | อลูมิเนียม |
|---|---|---|---|
| อุณหภูมิสี (CCT): | 5700k-6500k | ประสิทธิภาพของโคมไฟส่องสว่าง: | 120 ล./ก |
| CRI (ra>): | 70±2 | อุณหภูมิในการทำงาน: | -20 ℃ -60 ℃ |
| พื้นที่แอปพลิเคชัน: | โซน 2,21,22 | แบรนด์ไดรเวอร์: | Meanwell |
| แหล่งกำเนิดแสง: | ครี | แรงดันไฟฟ้า (V): | 100-240V |
| เน้น: | explosion proof LED high bay lights,grain processing explosion proof lights,agricultural product LED high bay |
||

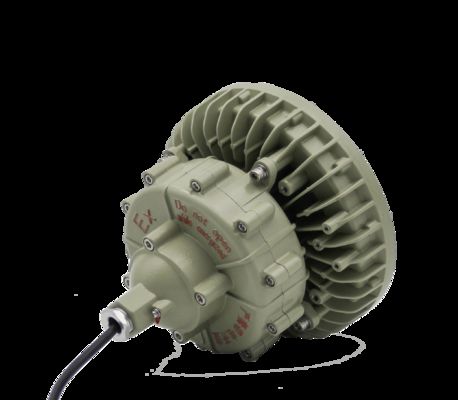

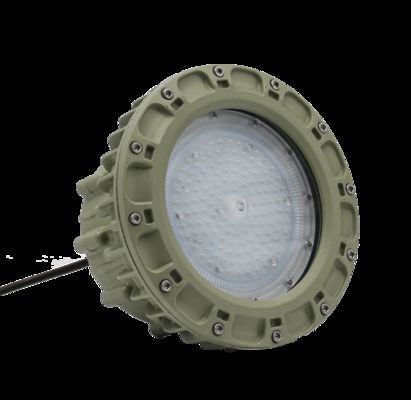

Maintenance Free Hazardous Location Explosion Proof Led High Bay Lights
Features:
1. Zone2, Zone 21,22
2. Instant on crisp white light output
3. High efficiency drivers and LEDs provide, low cost operation in harsh and heavy industrial applications
4. Isolated LED compartment reduces temperature within driver housing
5. Multi choice of beam angle for 60° 90° 120°
Application:
1. Aerospace and Transportation
Locations:
Aircraft hangars: Aircraft maintenance may result in fuel vapor leaks (jet fuel) or the presence of flammable cleaning agents.
Ship compartments (cargo holds, engine rooms): Ships, especially those transporting chemicals or fuel, may experience the accumulation of flammable vapors.
Automobile paint booths: Flammable paints and thinners are used, and their vapors are explosive when mixed with air.
Highway tunnels: Tunnels can become hazardous areas if a vehicle transporting hazardous chemicals leaks, so explosion-proof lighting is a safety standard.
2. Military and Fireworks Industry
Locations: Gunpowder, explosives, and detonator production and storage workshops; fireworks manufacturing plants.
Risks: These locations are inherently filled with flammable and explosive materials, and any electrical spark could potentially cause a disaster. Therefore, the explosion-proof requirements for electrical equipment are extremely high.
3. Laboratories and Research Institutions
Locations: Chemical and biological laboratories (which may use flammable solvents such as hydrogen).
Risks: During experiments, flammable gases, vapors, or dusts may be used or generated, necessitating the use of explosion-proof lighting and electrical appliances, either in small areas or throughout the entire laboratory.
4. Special Commercial Locations
Locations: Printing plants and dry cleaners (which utilize traditional flammable solvents such as tetrachloroethylene) that use large quantities of alcohol-based disinfectants or solvents.
Risks: While not directly industrial environments, the concentrations of flammable vapors generated during work may reach dangerous levels.
Specification:
| European (ATEX) Gas and Dust | II 2G Ex nR e IIC T6 II 2D Ex td T80℃ |
||||||
| For use in | Zone 2 & Zone 21, 22 | ||||||
| Electrical data | |||||||
| Rated voltage | 100-240VAC, 50-60Hz | ||||||
| Power factor | >0.95 | ||||||
| THD | <20% | ||||||
| Luminous characteristics | |||||||
| Power consumption [W] | 20～70 | 80-100 | 100-200 | 220-300 | |||
| Colour rendering [CRI] | 70 (±2) | ||||||
| Colour temperature [K] | 5700-6500 | ||||||
| Luminaire efficiency [Lm/W] | 125 | ||||||
| Beam angle | 120° (60°, 90° is optional) | ||||||
| Mechanical data | |||||||
| Degree of protection | IP66 | ||||||
| Cable entry | G 3/4” | ||||||
| Weight [kg] | 4.8 | 6.4 | 8.8 | / | |||
| Terminal | ≤2.5 mm² | ||||||
| Mounting Styles | Ceiling; Wall Bracket; Pendant | ||||||
Installation method:
Bracket type, hoisting type, flange type, ceiling type, wall type
