รายละเอียดสินค้า:
|
| ยี่ห้อ: | Crown Extra | แบบอย่าง: | Gyj |
|---|---|---|---|
| พิมพ์: | ไฟปรับร่องระเบิด/GYZD | แรงดันไฟฟ้า: | 220VAC , 24VDC |
| ความรุนแรง: | ต่ํา> 200cd, กลาง> 2000cd, สูง> 20000cd | ความถี่กระพริบ: | 20-60 ครั้ง/นาที |
| สี: | สีแดง/โปร่งใส | ได้รับการรับรอง: | CNEX, EX, IP66, IEC, IECEX |
| การติดตั้ง: | กำแพง | ||

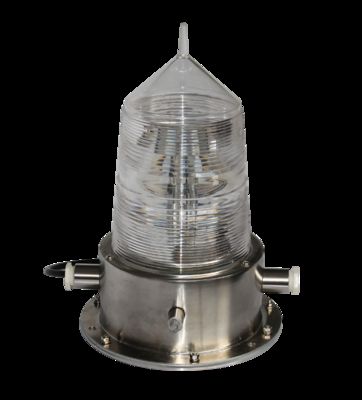

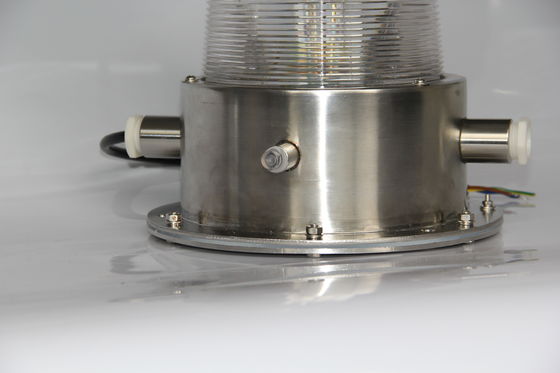

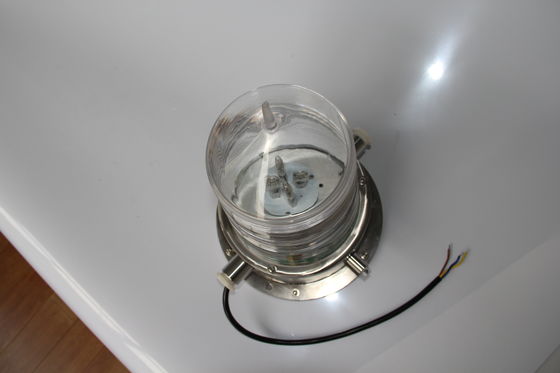

| เน้น: | custom red explosion proof obstruction light,20-60 times/min LED aviation light,airport explosion proof alarm light |
||
| oil refineries, chemical and petrochemical plants, offshore plants, onshore plants, oil loading jetties, military ect. |
| Tall buildings |
| Areas requiring high ingress protection and wet environment |
| Can be used in Zone 1, 2(gas) and Zone 21, 22 (dust) |
| Housing: | Die-casting aluminum/Stainless steel |
| Exterior: | Stainless steel |
| Globe: | Tempered glass |
| Gasket: | Silicon rubber |
| Certifications | ATEX CNEX CE RoHS ISO9001 |
| Ex Marking | Ex de IIC T6,DIP A20 TA,T6 |
| Classification | Zone 1, 2 & Zone 21, 22 |
| Input Voltage | AC220V, 50Hz |
| IP Degree | IP66 |
| Synchronized Flashing (Wireless) | Optional |
| With solar panel | Optional |
| Light color | Red/Transparent |
| Charging time | 24 hrs |
| Ambient temperature | -40℃~+70℃ |
| Model | GYZD81-I | GYZD81-II | GYZD81-III |
| Effective Luminous Intensity | Low intensity >200cd | Low intensity >2000cd | Low intensity >20000cd |
| Power consumption | <8 W | <40W | <100 W |
| Light Source | LED | LED | Xenon lamp |
| Flash Rate (flash per minute) | 20-60 | 20-60 | 16-60 |
| Weight kg | 2.8 | 4.8 | 6.0 |
Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
