รายละเอียดสินค้า:
|
| เน้น: | FlameProof LED light explosion proof,Explosion proof LED high bay light,Petrochemical explosion proof LED light |
||
|---|---|---|---|

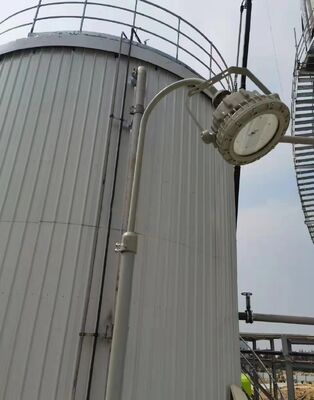

Zone1 Zone21 High Lumen Explosion Proof Led High Bay Lights 90w
Features:
Aluminium alloy Enclosure,high voltage electrostatic powder coated after shot blasted.
High strength toughened glass cover.
Exposed fasteners are of stainless steel with function of high corrosion-proof.
With grids to adjust lighting effect and reduce the glare.
Environmental-friendly and energy saving, simple shape, easy installation
Constant current output, stable performance
Low power consumption, high light efficiency, good color rendering property
Widely used in factories, warehouses, stadiums and other panoramic lighting
Application:
| Oil and Gas industry |
| 1. All petroleum production and refining |
| 2. Petroleum storage |
| Chemical industry |
| 1. All types of paint facilities |
| 2. Chemical production and storage |
| Metal treatment |
| 1. Steel and aluminum factories |
| 2. Pumping stations in any environment |
| Food and alcohol industry |
| 1. Flour and fine particle production and storage |
| 2. Food and distilling production |
Specification:
| ELECTRIC | |||
| Operating voltage | AC 110-240V (50-60Hz) | Power consumption | 50W/100W/150W |
| MECHANICAL | |||
| Humidity | 10%~95%RH | Anti-corrosion | C4/WF1/WF2 |
| Operating temperature | -30 ̊C ~ +40 ̊C | Cable entry | M25*1.5/NPT 3/4”cable entry, suitable for ø10 ~ ø14mm² cable ≤2.5mm² conductor |
| Weight | 8Kg | IP Class | IP65 |
| Installation | Bracket mount, ceiling mount, 30° wall mount, 90° wall mount, jib mount, guardrail mount, flange mount | ||
| CERTIFICATION LABEL | |||
| Standard | GB3836.1-2010,GB3836.2-2010, GB12476.1-2000, | ||
| IEC60079-0:2011, IEC60079-1:2007 | |||
| EN60079-0:2009,EN60079-1:2007,EN60079-31:2009 | |||
Installation Instructions:
Before installation, check voltage, power and other parameters carefully and make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
FAQ:
Q1. Can I have a sample order for explosion-proof led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What kind of payments do you accept?
A:T/T, L/C, Western Union,, MoneyGram, etc..
Q3:What is you main products?
A: Explosion-proof LED light ,explosion-proof box,explosion proof fittings, etc.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q5: What's the MOQ?
A:MOQ is 1 set.
