รายละเอียดสินค้า:
|
| ยี่ห้อ: | Crown Extra | ชื่อผลิตภัณฑ์: | ป้ายทางออกป้องกันการระเบิด/ BYY |
|---|---|---|---|
| ที่อยู่อาศัย: | อลูมิเนียมหล่อ | cri: | RA: ≥70 |
| ประสิทธิภาพ: | 100lm/w | ได้รับการรับรอง: | CNEX, EX, IP66, IEC, IECEX |
| CCT: | 3000/4000/5000/5700K | การติดตั้ง: | กำแพง |
| แรงดันไฟฟ้า: | 220VAC 24/66VDC |

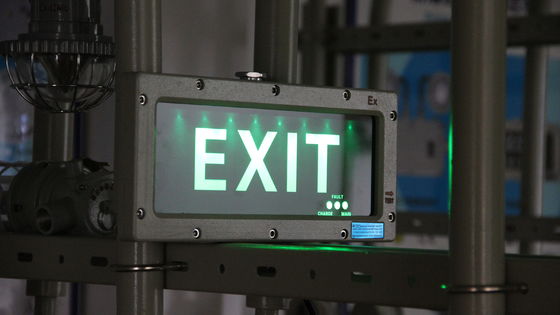

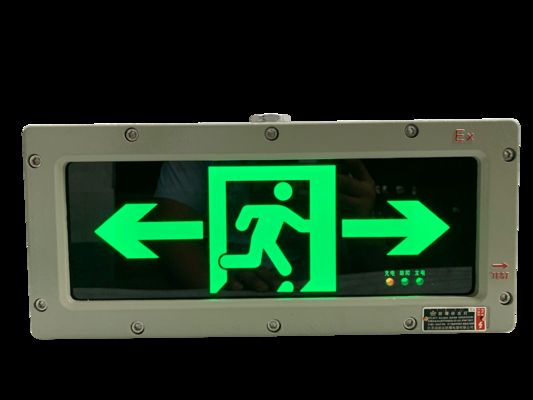

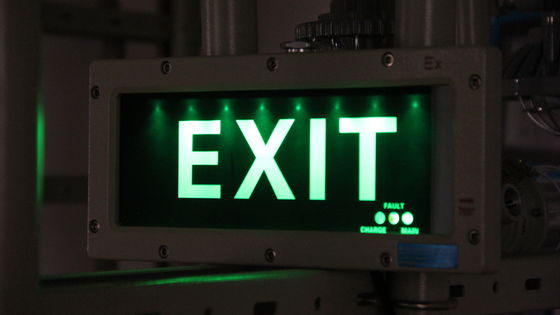

Wholesale Factory Emergency Fire-Fighting Led Lighting Exit Signs Hotel 3W LED Emergency Exit Sign Light
BYY Series
Features:
Applications
| Typical applications include: |
| Oil and gas industries |
| Chemical, petrochemical |
| Pharmaceutical industries |
| Pulp and Paper |
| Waste and sewage treatment |
| Power Generation |
| Other high humidity, high dust, high temperature, vapor locations |
| Housing: |
Die-casting aluminum
|
| Exterior: | Stainless steel |
| Globe: |
Tempered glass
|
|
Gasket:
|
Silicon rubber
|
| Certifications |
ATEX
CNEX
CE
RoHS
ISO9001
|
| Ex Marking |
Ex e IIC T6/ Ex tD A21 T80℃
|
|
Application
|
Zone 1, 2 & Zone 21, 22
|
| IP Degree | IP65 |
|
Corrosion Resistant
|
WF1 |
|
Wattage
|
1.5-3W |
|
Entries
|
G 3/4" Conduit Entry, Suitable for Φ10mm-Φ14mm cable
|
|
Input Voltage
|
DC 110V;AC220V 50Hz
|
|
Red Lettering
|
Optiional
|
|
Back-up Battery
|
>120 min
|
| Weight |
3.25kg
|
| Mounting Styles | Pendant; Ceiling; wall |
Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
Company information:
Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company is located in Changzhou, known as the "Dragon City" in the Yangtze River
Delta of China. The company is committed to becoming a provider of green, environmentally friendly,
energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
fire fighting, ships, roads, pharmaceuticals, etc. And professional technical service programs.
FAQ:
Q1. Can I have a sample order for explosion-proof led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What kind of payments do you accept?
A:T/T, L/C, Western Union,, MoneyGram, etc..
Q3:What is you main products?
A: Explosion-proof LED light ,explosion-proof box,explosion proof fittings, etc.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q5: What's the MOQ?
A:MOQ is 1 set.
